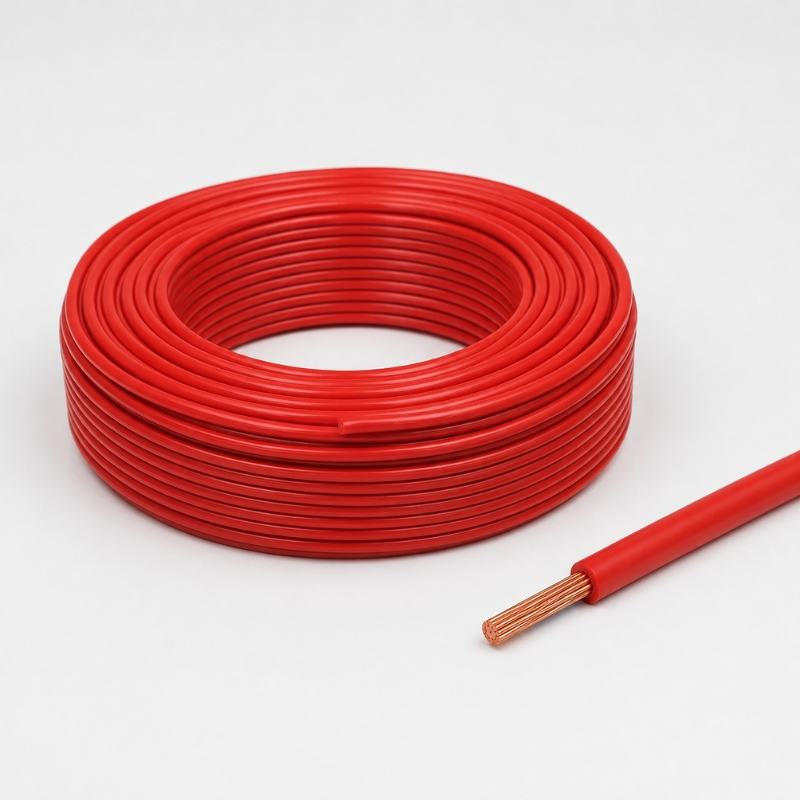

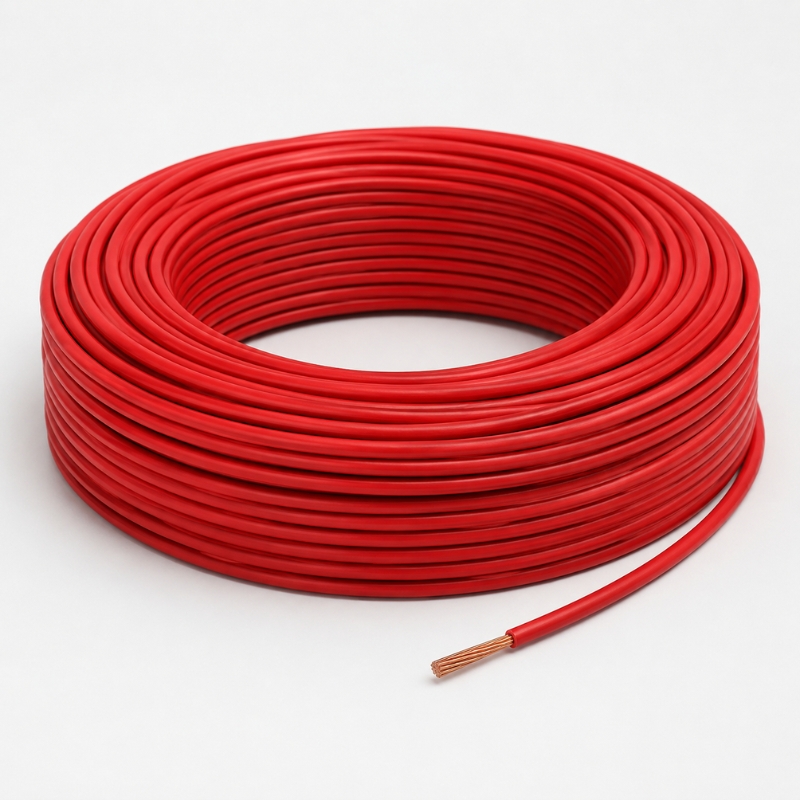

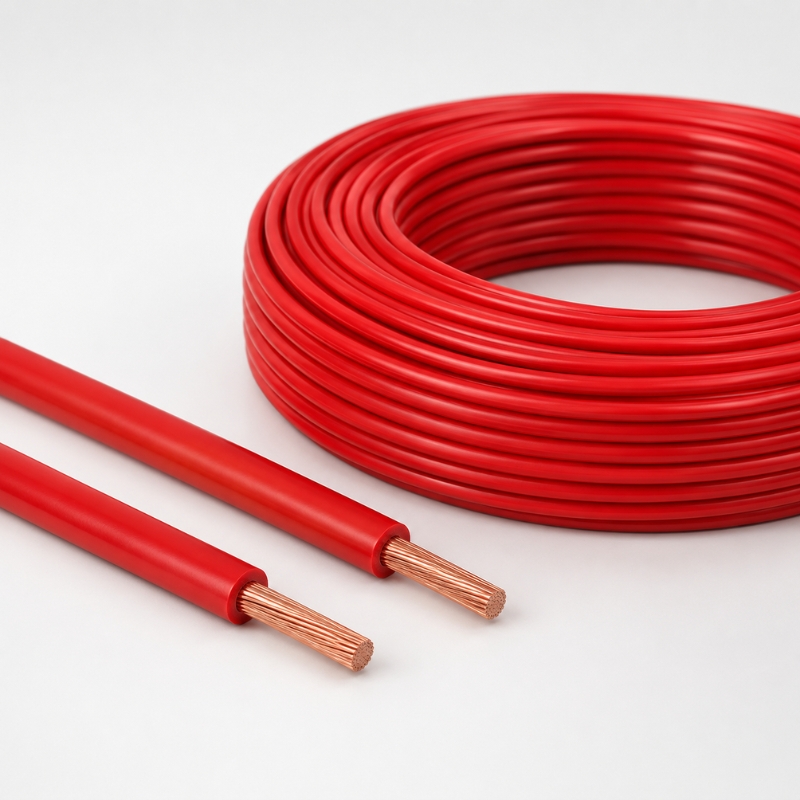

H07V-R 2.5mm² PVC Insulated Building Wire
Free
Single-core PVC insulated copper building wire for fixed wiring applications, rated 450/750V and tested according to IEC 60227-3.
Description
Technical Specifications
| Type reference | 60227 IEC 01 / H07V-R |
|---|---|
| Nominal conductor size | 2.5mm² |
| Rated voltage | 450/750V |
| Number of cores | 1 |
| Conductor material | Copper |
| Conductor finish | Untinned |

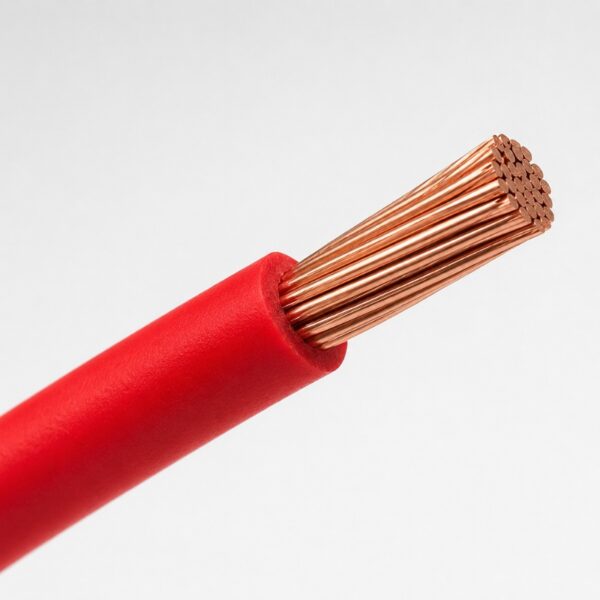

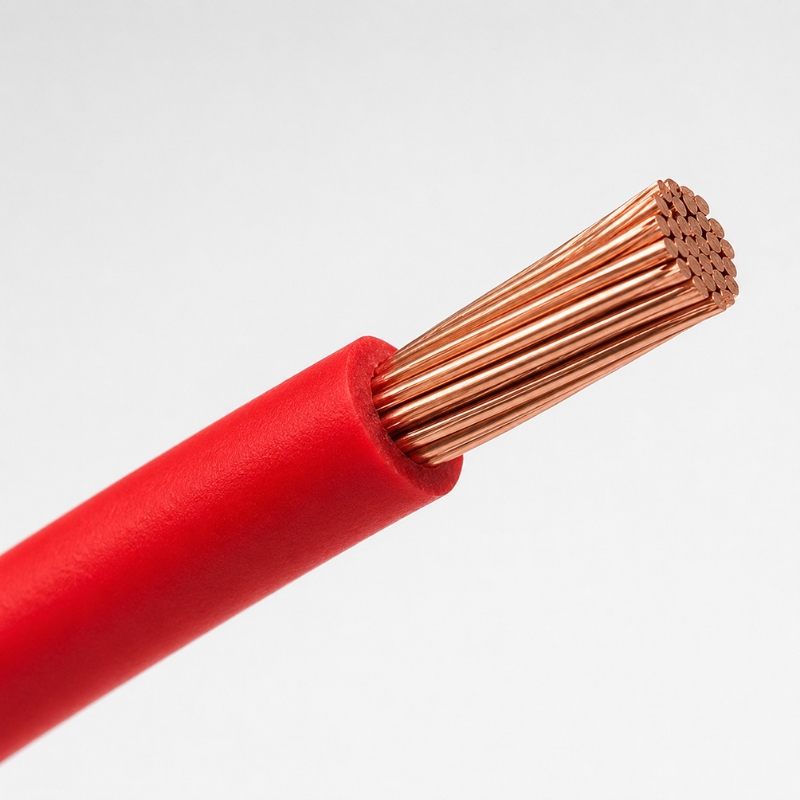

| Number of conductor wires | 7 |
| Wire diameter | 0.67mm |
| Observed conductor resistance at 20°C | 7.37 Ω/km |
| Insulation material | PVC/C compound |
| Specified insulation thickness | 0.8mm |
| Observed minimum insulation thickness | 0.72mm |
| Mean overall diameter | 3.6mm |
| Voltage test | 2500V for 5 minutes, no breakdown |
| Observed insulation resistance at 70°C | 0.071 MΩ/km |
| Tested sample colour | Red |
| Reference standard | IEC 60227-3 |
| Price | Quote-based / available on request |
