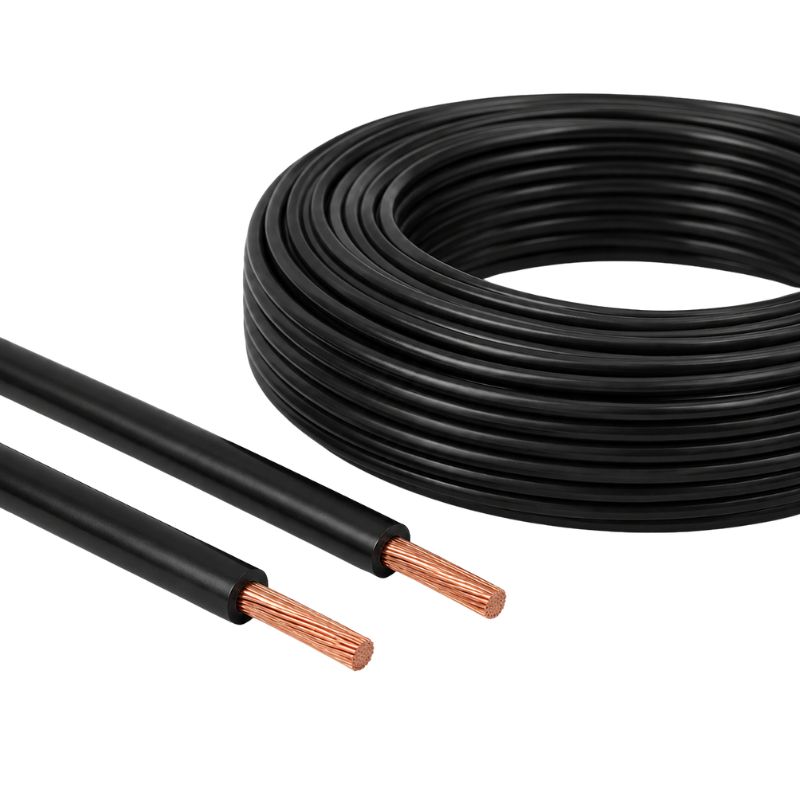

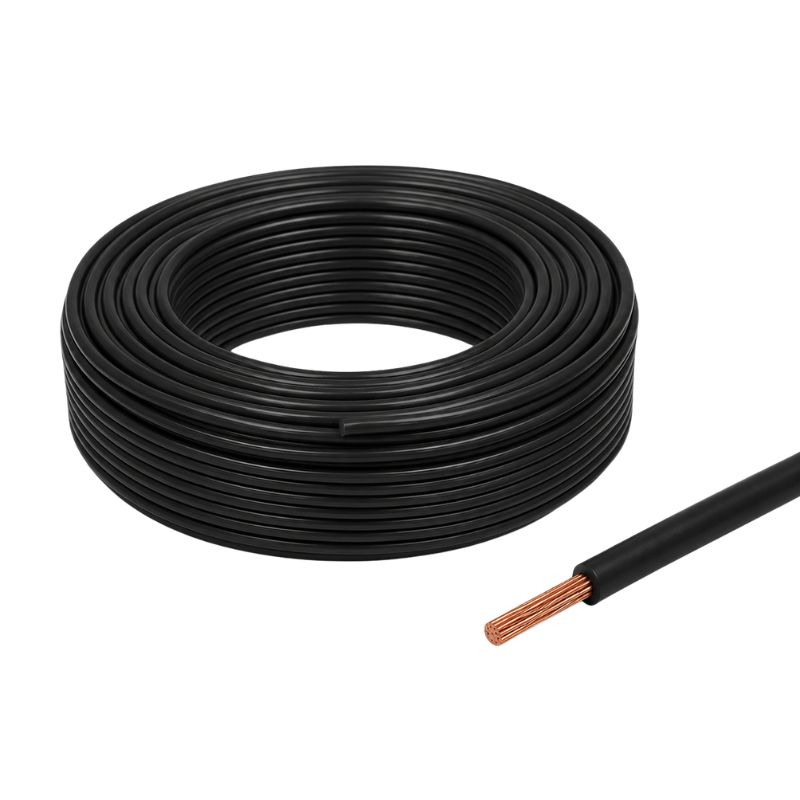

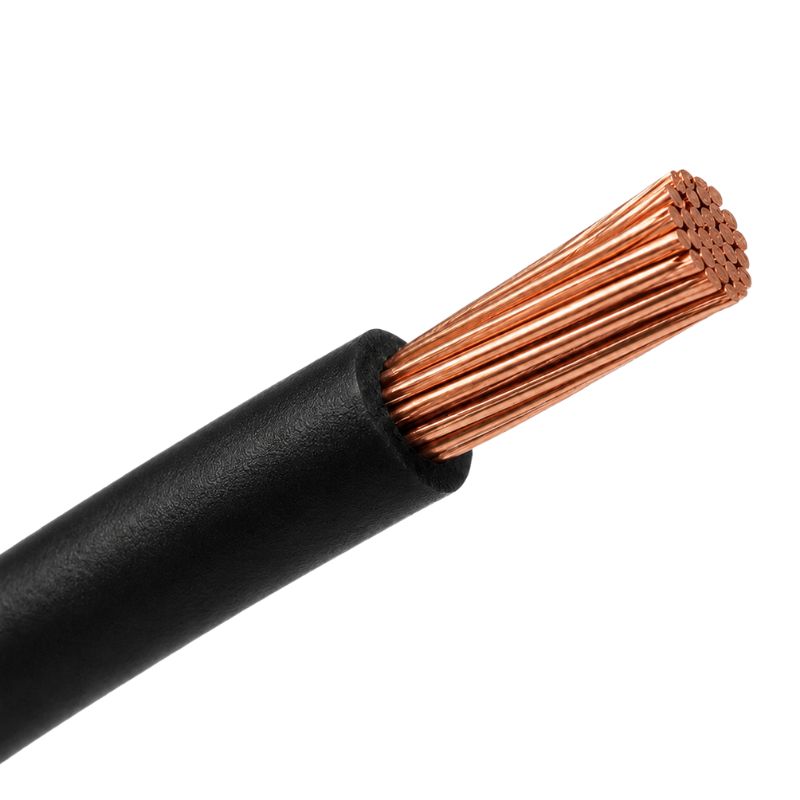

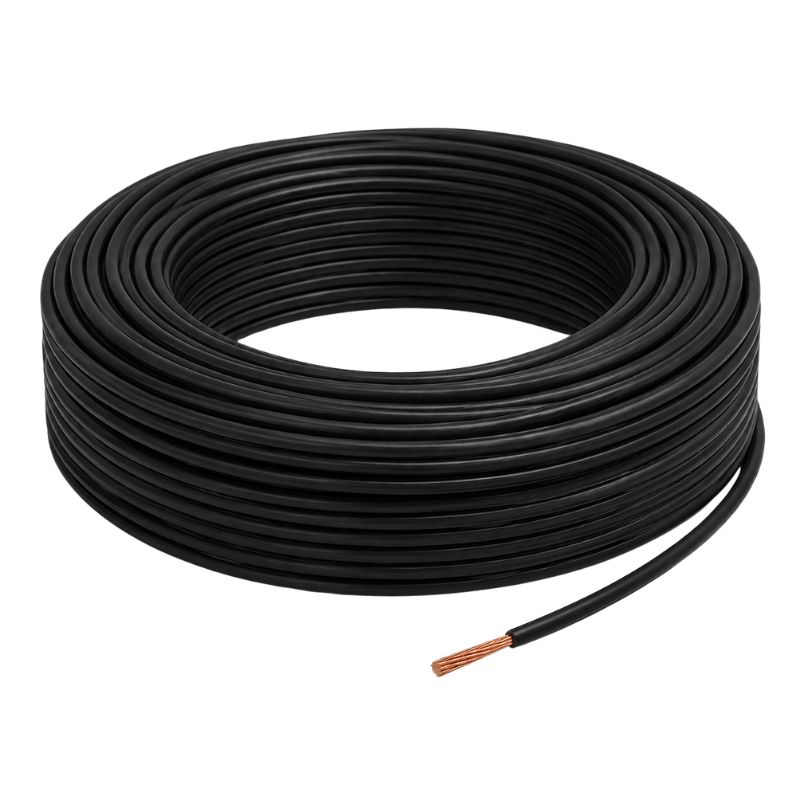

H07V-R 1.5 mm² Black PVC-Insulated Building Wire
Single-core PVC insulated copper building wire in Black, for fixed wiring applications, rated 450/750V to IEC 60227-3.
Request a quotationPricing available on request.
Description
Technical Specifications
| Type reference | 60227 IEC 01 / H07V-R |
|---|---|
| Nominal conductor size | 1.5mm² |
| Rated voltage | 450/750V |
| Number of cores | 1 |
| Insulation colour | Black |
| Conductor material | Copper |
| Conductor finish | Untinned |
| Conductor class | Class 2 stranded (IEC 60228) |
| Number of conductor wires | 7 |
| Wire diameter | 0.52mm |
| Maximum conductor resistance at 20°C | 12.1 Ω/km (IEC 60228 limit) |
| Insulation material | PVC/C compound |
| Specified insulation thickness | 0.7mm |
| Mean overall diameter | 3.1mm |
| Routine voltage test | 2500V for 5 minutes per IEC 60227-2 |
| Reference standard | IEC 60227-3 |
| Price | Quote-based / available on request |
